- ✔️ AZ-Delivery DRV8825 Stepper Motor Driver Modules are the upgraded version of well known A4988 Driver motors, and are used in 3D printers and small CNC machines.
- ✔️ These handy DRV8825 Stepper Motor Driver Modules have 4-layer PCB for improved heat dissipation and decreased chip resistance.
- ✔️ AZ-Delivery DRV8825 Stepper Motor Driver Modules support 1/2, 1/4, 1/8, 1/16 and 1/32 microstepping.
- ✔️ These Stepper Driver Motor Modules can be operated from 8.2 V to 45 V and can deliver up to approximately 1.5 A per phase. It comes with 0.1"-pitch male header pins installed.
- ✔️ This product includes an E-Book that provides useful information on how to begin your project, it helps with a quick setup and saves time on the configuration process. We provide an array of application examples, full installation guides and libraries.
- weitere Produktdetails

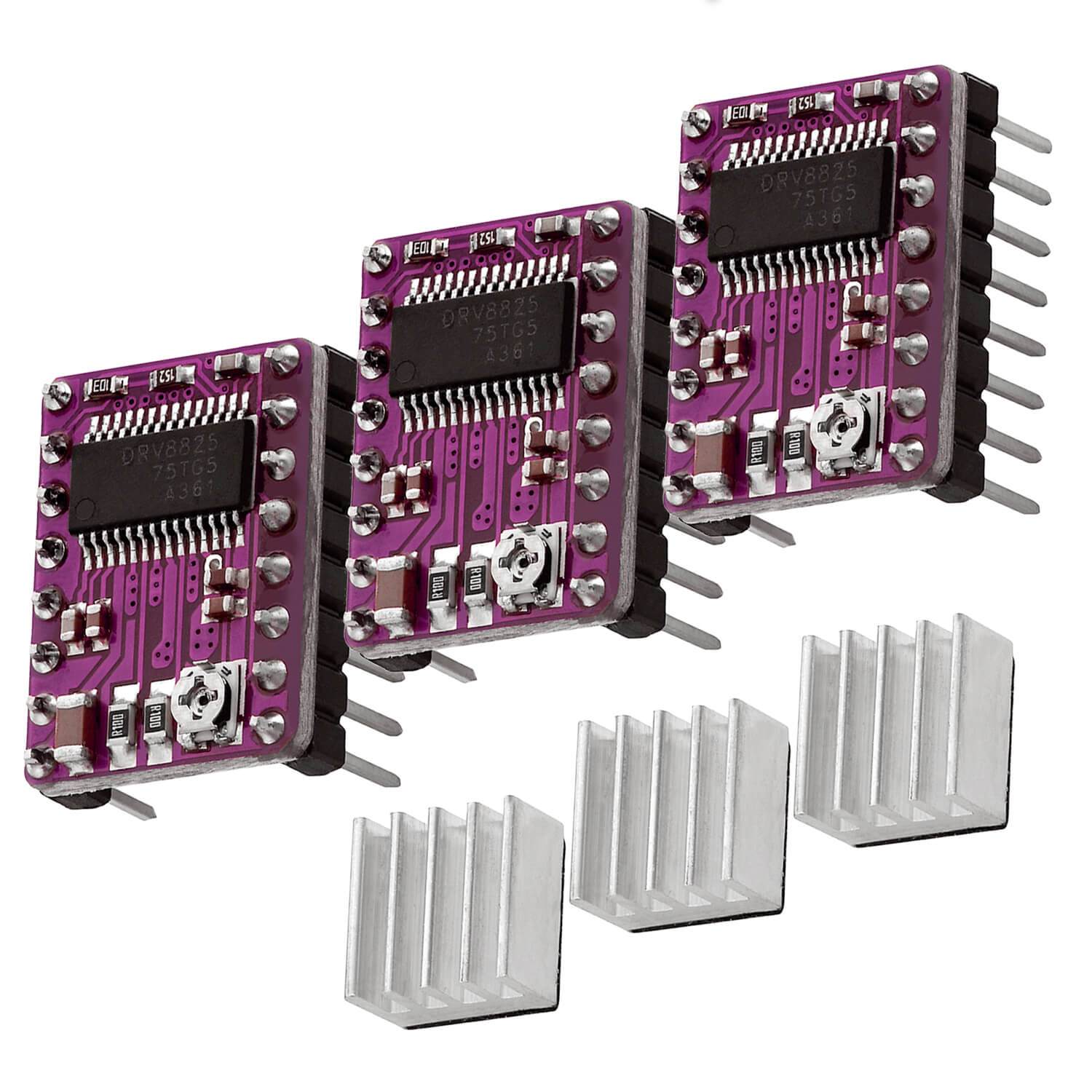

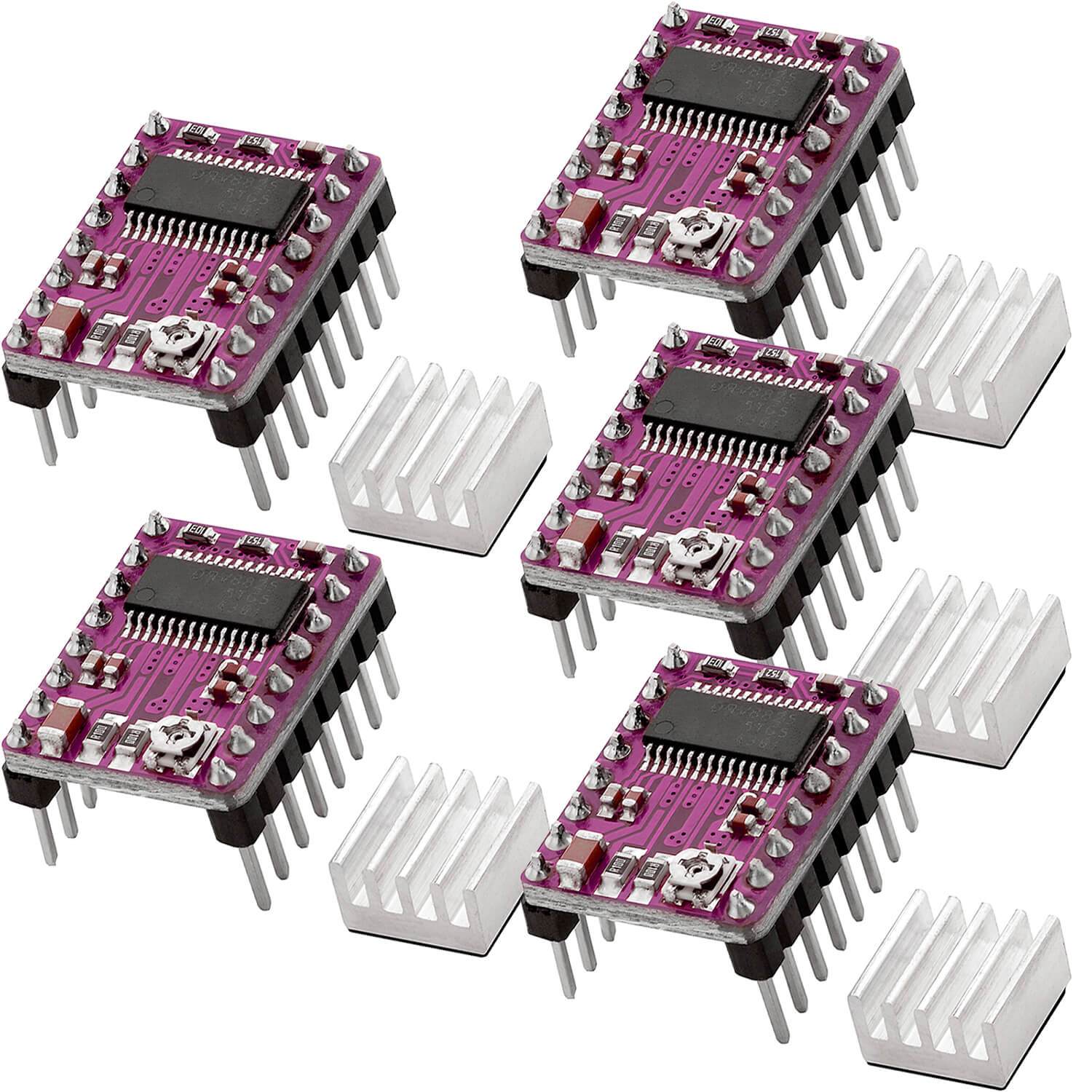

AZ-Delivery DRV8825 Stepper Motor Driver Module with Heatsink for RAMPS 1.4, CNC-Shield, 3D printer, Prusa Mendel provides an integrated motor driver solution for printers, scanners, and other automated equipment applications.
The device has two H-bridge drivers, and can drive a bipolar stepper motor or two DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as full H-bridges to drive the motor windings.
AZ-Delivery DRV8825 Stepper Motor Driver Module can supply up to 2.5 A peak or 1.75 A RMS output current (with proper heatsinking at 24 V and 25°C).

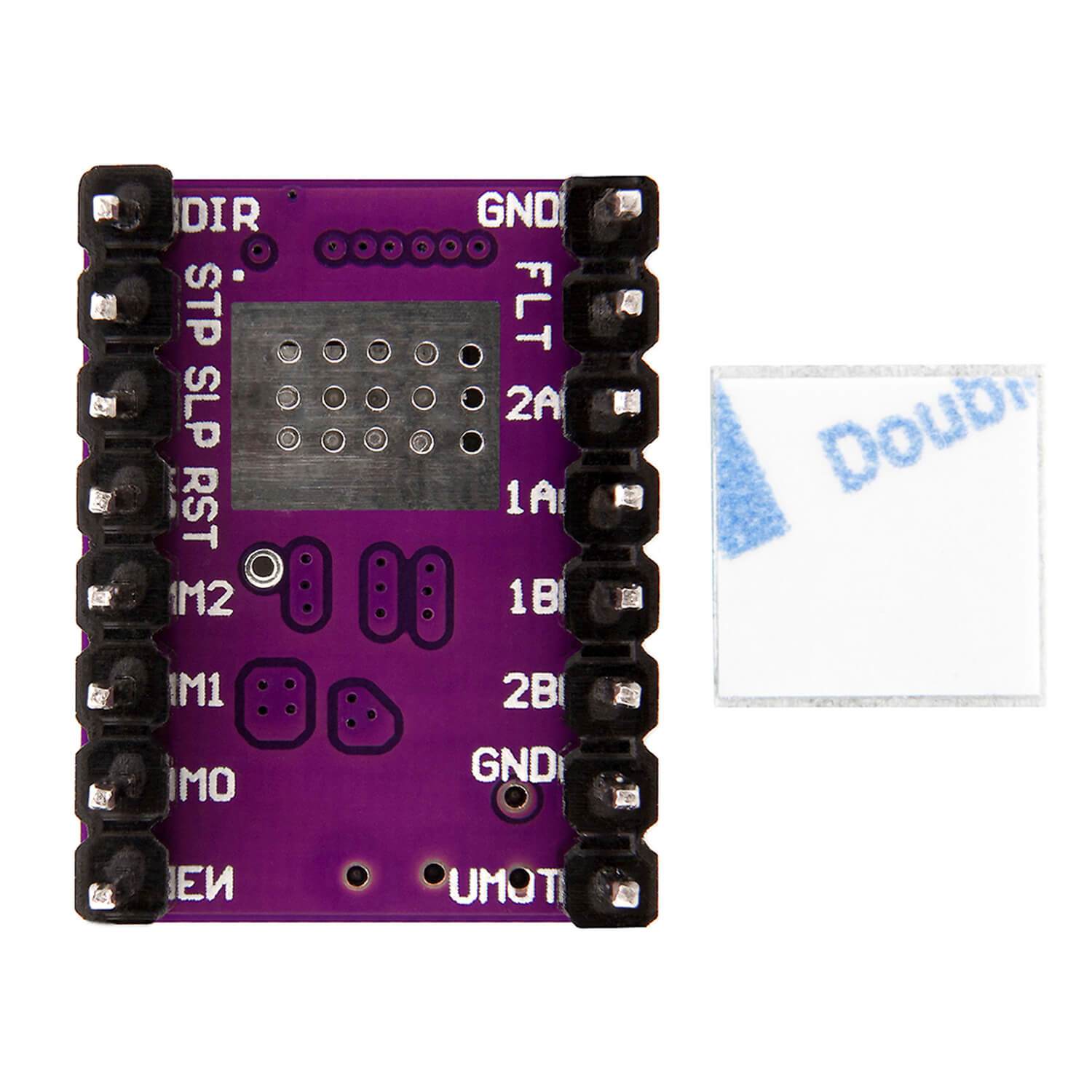

Simple step/direction interface allows easy interfacing to controller circuits. Pins allow configuration of the motor in full-step up to 1/32-step modes.
For top quality Raspberry Pi products etc, AZ-Delivery Vertriebs is your go to.
We provide an array of application examples, full installation guides, eBooks, libraries, and all-round assistance.
AZ-Delivery, your microelectronics expert!
