Prototyping Shield for D1 Mini NodeMCU ESP8266

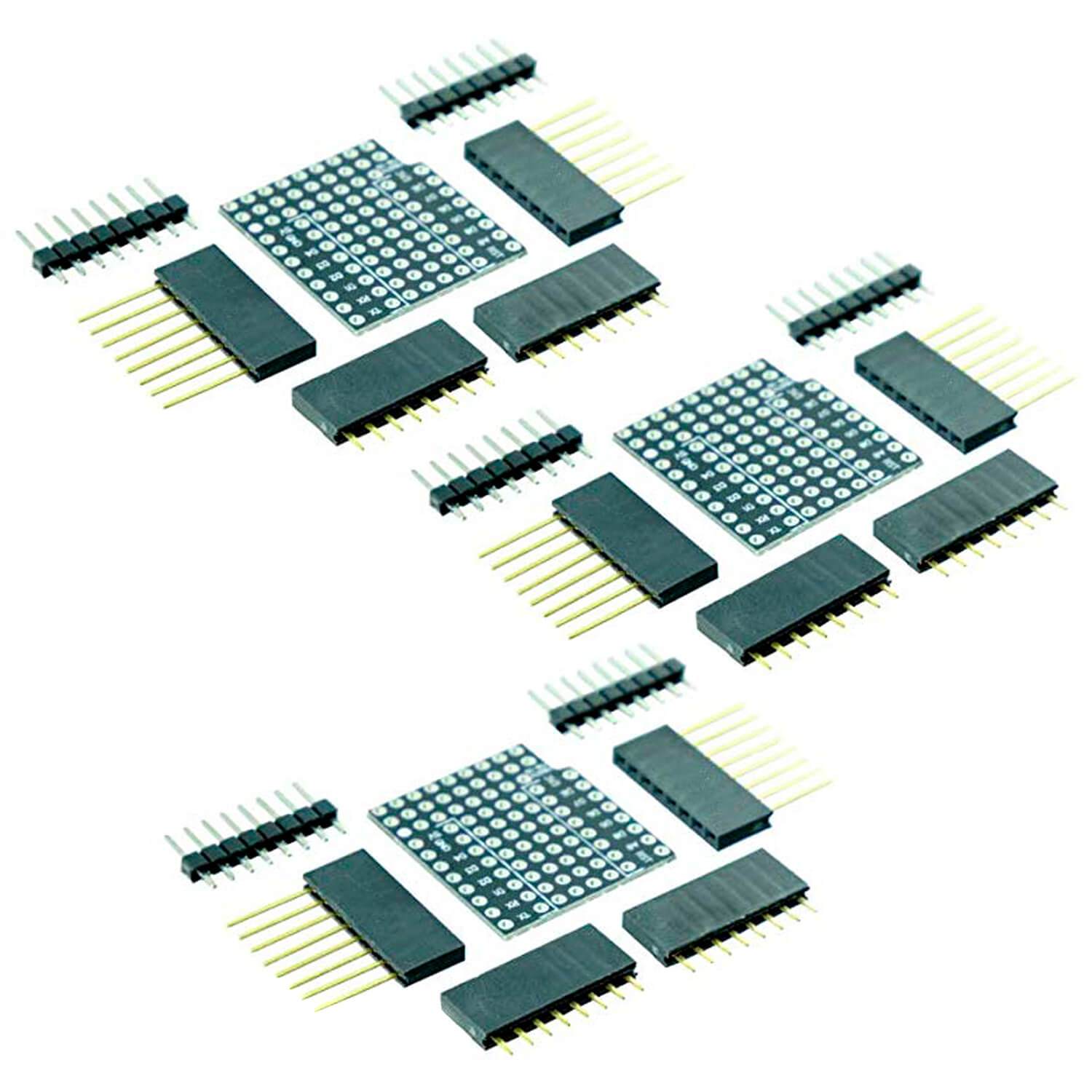

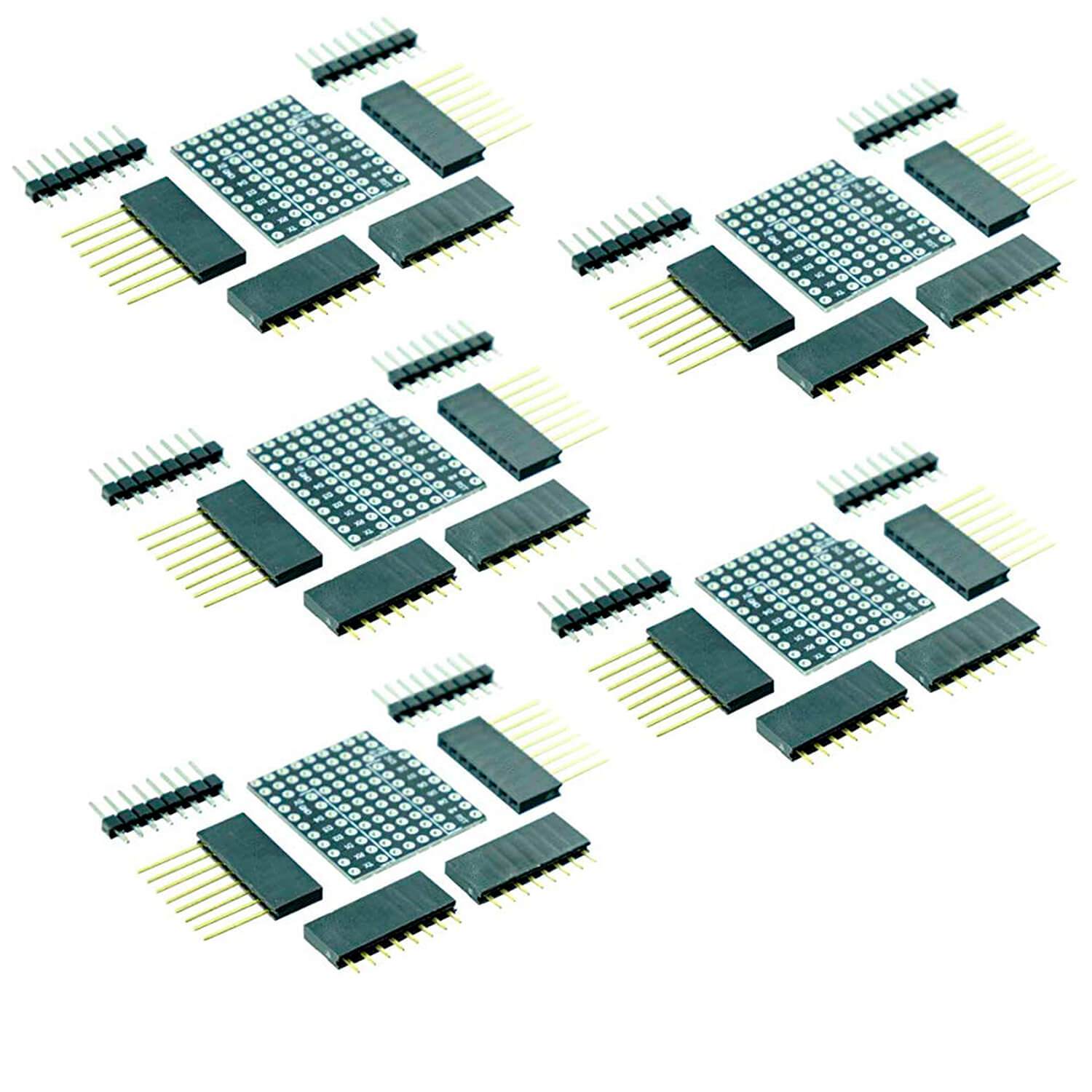

Select quantity discount: 1x Set
Price:
Sale price€3.29

Tax included

Stock:
Only 24 units left

✅ Der D1 Mini Prototyping Shield ist so konzipiert, dass Sie Ihren D1 Mini um verschiedene Komponenten erweitern können.
✅ Produktgröße: 25mm x 28mm
✅ Lochabstand: 0,1 Zoll
✅ Anzahl der Prototyping-Löcher: 70

Important downloads and links

Description

The AZ-Delivery Prototyping Shield for D1 Mini is specifically designed for use with D1 Mini and Mini Pro development boards.

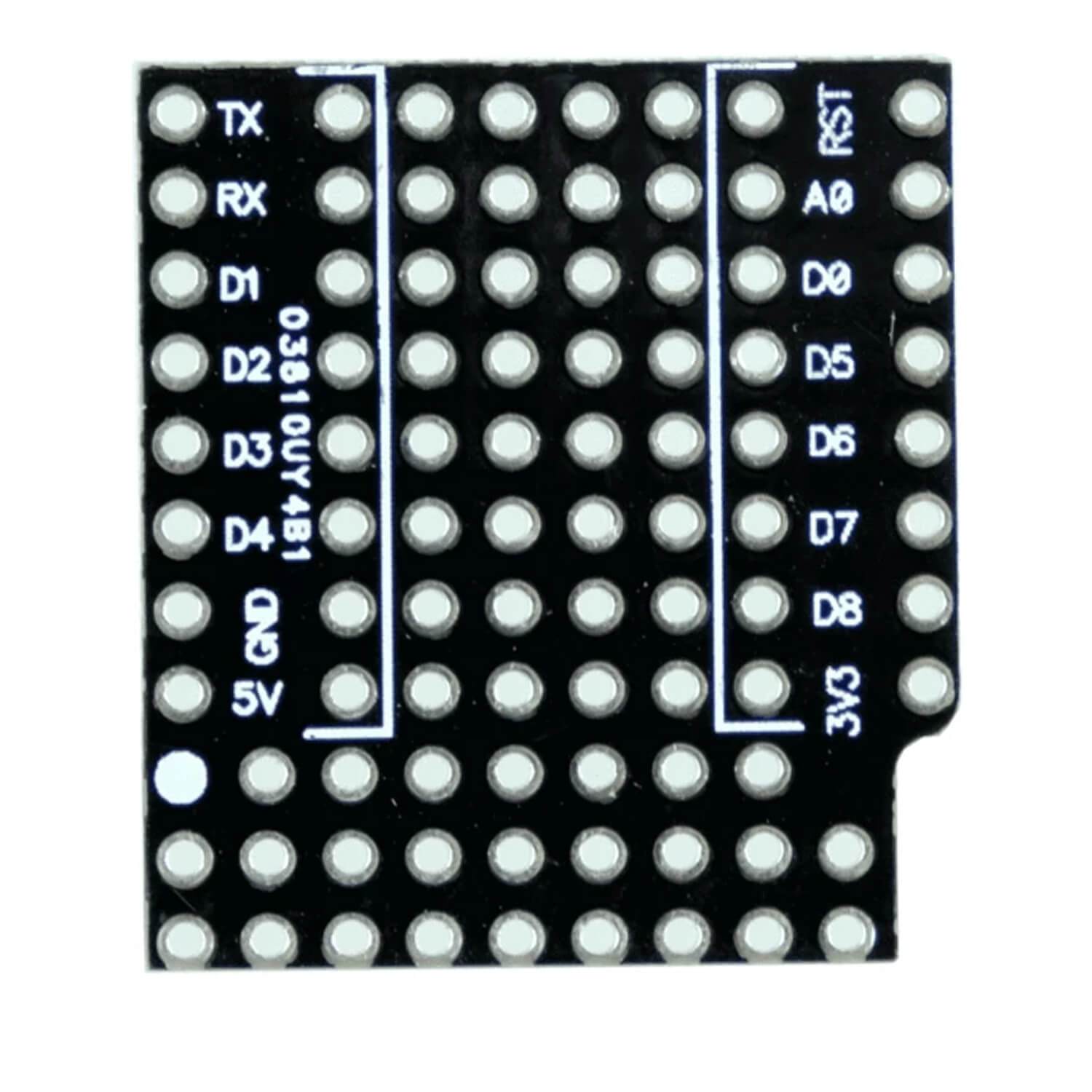

It is a thin, rigid board with holes pre-drilled at standard intervals in a square grid of 2.54 mm (0.1 inch) spacing.
These holes are rimmed with round or square copper pads, but untreated boards are also available.
This allows you to create your own custom shielding that can then be plugged directly into the D1 Mini.
Included with the PCB are 3 sets of pins (solder) that allow multiple shields to be stacked on top of each other.
The PCB allows unrestricted access to all D1 Mini interface pins including the power supply.

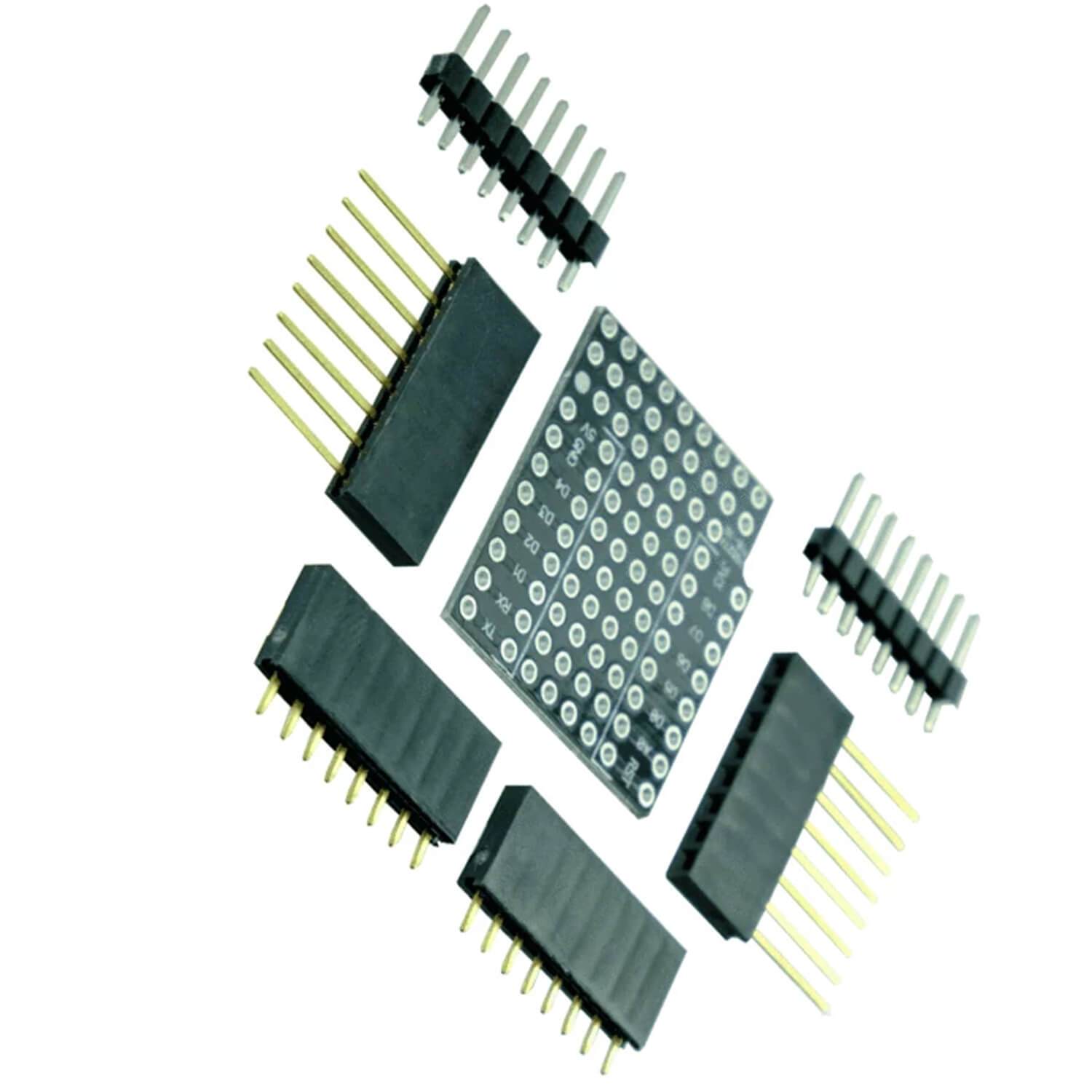

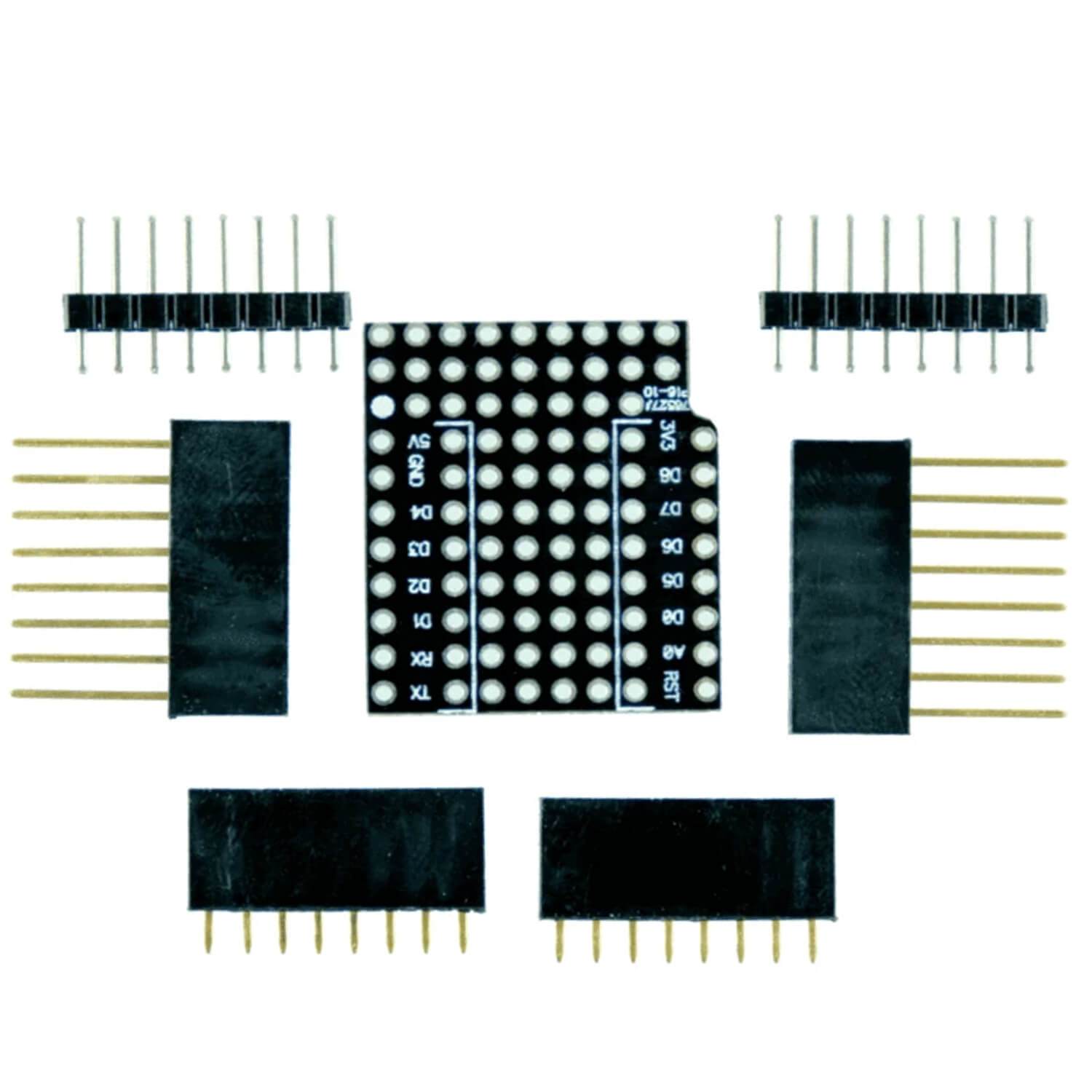

Included:

✔️2 pcs x Long female pins.
✔️2 pcs. x Short female pins
✔️2 pcs. x Normal pins
✔️1 pcs x Prototyping Board Shield.

With your order at AZ-Delivery you get a product in usual high quality and with fast delivery directly from Germany for a discount price!

For further ideas and projects please visit our blog on the internet or download our free eBooks!

AZ-Delivery: Your expert for microelectronics!
